| Gösteri. |
Bölüm No. |
Qty |
Parça adı |
Yorumlar |
| 1 |
1156034010 |
[1] |
PUMP ASM; INJ |
Bileşen için FIG-NO 0-80 - 0-85'e bakın. |
| 1 |
1156034261 |
[1] |
PUMP ASM; INJ |
Bileşen için FIG-NO 0-80 - 0-85'e bakın. |
| 2 |
8943973591 |
[4] |
BOLT; INJ PUMP |
M10X85 Flanş |
| 6 |
1197511560 |
[1] |
BRACKET; C/BL'ye INJ pompası |
|
| 007 ((A). |
289814900 |
[2] |
BOLT; INJ PUMP BRKT |
Bir M14X90 FLANGE |
| 007 ((A). |
289514900 |
[2] |
BOLT; INJ PUMP BRKT |
M14X90 FLANGE |
| 007 ((B). |
9098041931 |
[2] |
BOLT; INJ PUMP BRKT |
M14X117 |
| 8 |
9091505140 |
[2] |
Yıkama; LK,INJ PUMP BRKT |
Bir kimlik = 14.2 |
| 8 |
915105140 |
[2] |
Yıkama; LK,INJ PUMP BRKT |
ID=14.2 |
| 10 |
9197590191 |
[2] |
DOWEL; INJ PUMP |
|
| 11 |
9091605140 |
[2] |
Yıkama; INJ PUMP BRKT |
A ID=15 |
| 11 |
916105140 |
[2] |
Yıkama; INJ PUMP BRKT |
ID=15 |
| 15 |
1157801461 |
[1] |
ASM; INJ pompası |
Bileşen için FIG-NO 0-87'ye bakın. |
| 16 |
1154164870 |
[1] |
PIPE; INJ NO.1 |
|
| 17 |
1154164880 |
[1] |
PIPE; INJ NO.2 |
|
| 18 |
1154164890 |
[1] |
PIPE; INJ NO.3 |
|
| 19 |
1154164900 |
[1] |
PIPE; INJ NO.4 |
|
| 20 |
1154164910 |
[1] |
PIPE; INJ NO.5 |
|
| 21 |
1154164920 |
[1] |
PIPE; INJ NO.6 |
|
| 031 ((A). |
1153004080 |
[6] |
NOZZLE ASM; INJ |
|
| 031 ((B). |
1153004170 |
[6] |
NOZZLE ASM; INJ |
|
| 032 ((A). |
1153301171 |
[6] |
HOLDER ASM; NOZZLE |
|
| 032 ((B). |
1153301281 |
[6] |
HOLDER ASM; NOZZLE |
|
| 33 |
1153113100 |
[6] |
NOZZLE; INJ |
|
| 35 |
1153491371 |
[6] |
Fırça; Fırça RET, Fırça Sahibi |
|
| 35 |
1153491560 |
[6] |
Fırça; Fırça RET, Fırça Sahibi |
|
| 38 |
1096235640 |
[6] |
GASKET; CAP NUT,NOZZLE HOLDER |
|
| 42 |
1153490500 |
[6] |
GASKET; INL CONNECTOR,NOZZLE HOLDER |
|
| 043 ((A). |
1153420020 |
[6] |
Koltuk; NOZZLE BAŞLIK,NOZZLE DOLDER |
|
| 043 ((B). |
1153420030 |
[6] |
Koltuk; NOZZLE BAŞLIK,NOZZLE DOLDER |
|
| 44 |
5153450030 |
[6] |
Yay; NOZZLE,NOZZLE HOLDER |
|
| 44 |
1153430050 |
[6] |
Yay; NOZZLE,NOZZLE HOLDER |
|
| 045 (A). |
1153410930 |
[6] |
Çubuk, it, nozzle tutucu |
|
| 045 (B). |
1153491290 |
[6] |
Çubuk, it, nozzle tutucu |
|
| 046 (A). |
9153470030 |
[12] |
PIN; NOZZLE SET,NOZZLE HOLDER |
|
| 046 (B). |
1153470011 |
[12] |
PIN; NOZZLE SET,NOZZLE HOLDER |
|
| 47 |
1153491570 |
[6] |
SPACEER; NOZZLE SPRING,NOZZLE HOLDER |
|
| 57 |
1096255440 |
[6] |
GASKET; toz kaplaması |
|
| 58 |
1153370220 |
[6] |
Flanş; INJ,NOZZLE HOLDER |
|
| 58 |
1153370290 |
[6] |
Flanş; INJ,NOZZLE HOLDER |
|
| 61 |
1090701210 |
[6] |
Bolt; Klampo nozel tutucusu |
|
| 66 |
1153150110 |
[6] |
GASKET; INJ NOZZLE |
Aşırı doz = 15.0
Aynı zamanda GASKET SET'e dahil edilmiştir. |
| 069 ((A). |
1154193340 |
[1] |
BRACKET; INJ PIPE CLIP |
|
| 069 ((B). |
1154195840 |
[1] |
BRACKET; INJ PIPE CLIP |
|
| 71 |
280808160 |
[4] |
BOLT; BRKT |
Bir M8X16 FLANGE |
| 71 |
280508160 |
[4] |
BOLT; BRKT |
M8X16 Flanş |
| 85 |
1096234780 |
[3] |
GASKET; BRKT,INJ PUMP |
ID=18.8
Aynı zamanda GASKET SET (Motör) 'e dahil |
| 107 |
911501060 |
[6] |
NUT; INJ PIPE CLIP |
Bir M6 Flanges |
| 107 |
911801060 |
[6] |
NUT; INJ PIPE CLIP |
M6 FLANGE |
| 110 |
911501060 |
[1] |
NUT; CLIP |
Bir M6 Flanges |
| 110 |
911801060 |
[1] |
NUT; CLIP |
M6 FLANGE |
| 113 |
1097011321 |
[14] |
CLIP; INJ PIPE |
ID=15 L=30 |
| 118 |
280806400 |
[1] |
BOLT; CLIP,INJ PIPE |
Bir M6X40 flange |
| 118 |
280506400 |
[1] |
BOLT; CLIP,INJ PIPE |
M6X40 Flanş |
| 122 (a). |
1097011321 |
[2] |
KLIP, borudan sızıntı |
ID=15 L=30 |
| 122 (B). |
5097070301 |
[2] |
KLIP, borudan sızıntı |
L=250 |
| 124 |
1096750371 |
[9] |
Bolt; göz sızdırması borudan |
M8X18 Flanş |
| 126 |
8943952140 |
[9] |
Kapak, göz perdesinin borudan sızması. |
Kimlik 8'dir.6
Aynı zamanda GASKET SET'e dahil edilmiştir. |
| 128 |
1154166540 |
[1] |
PIPE ASM; INJ |
|

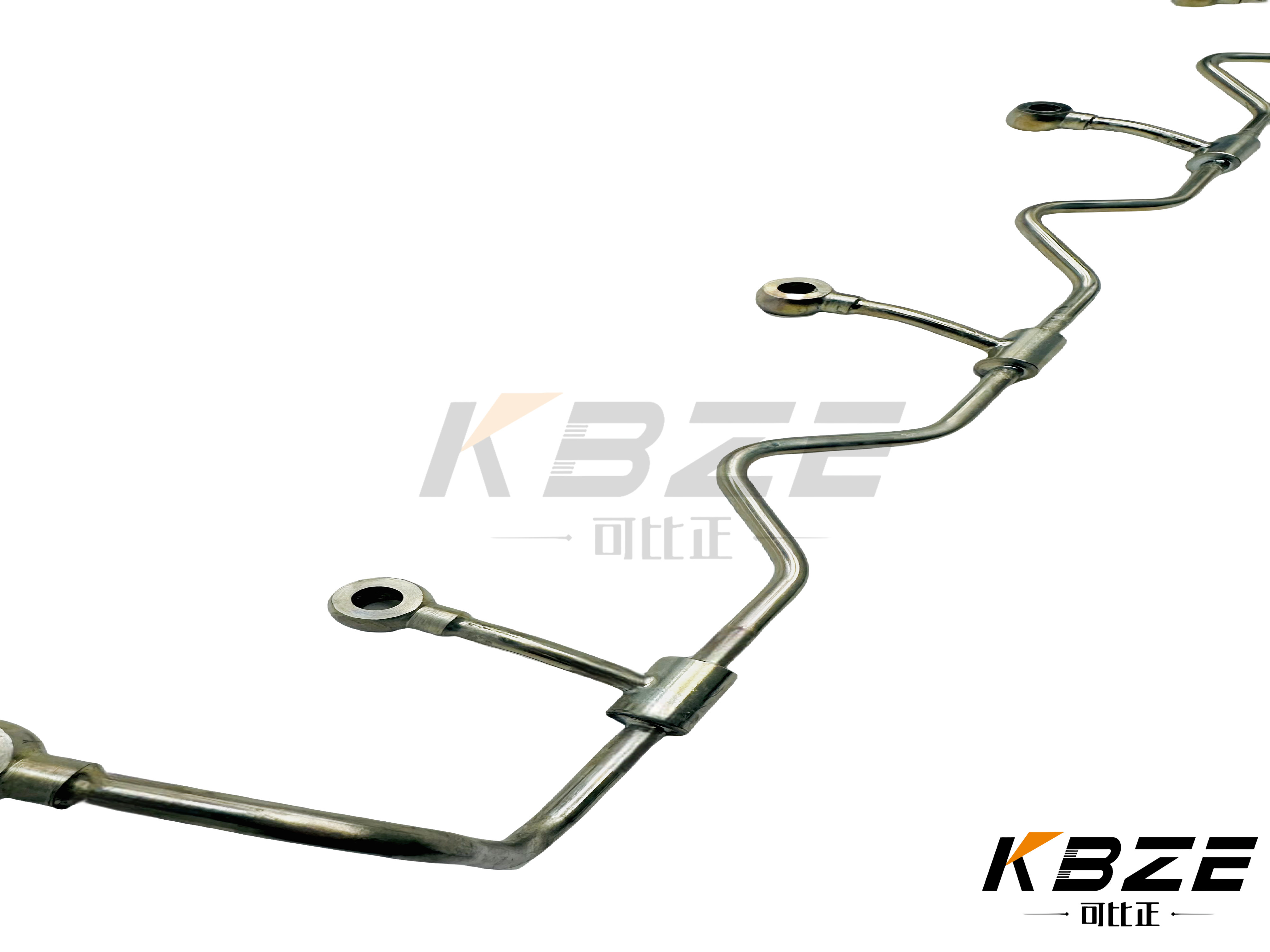

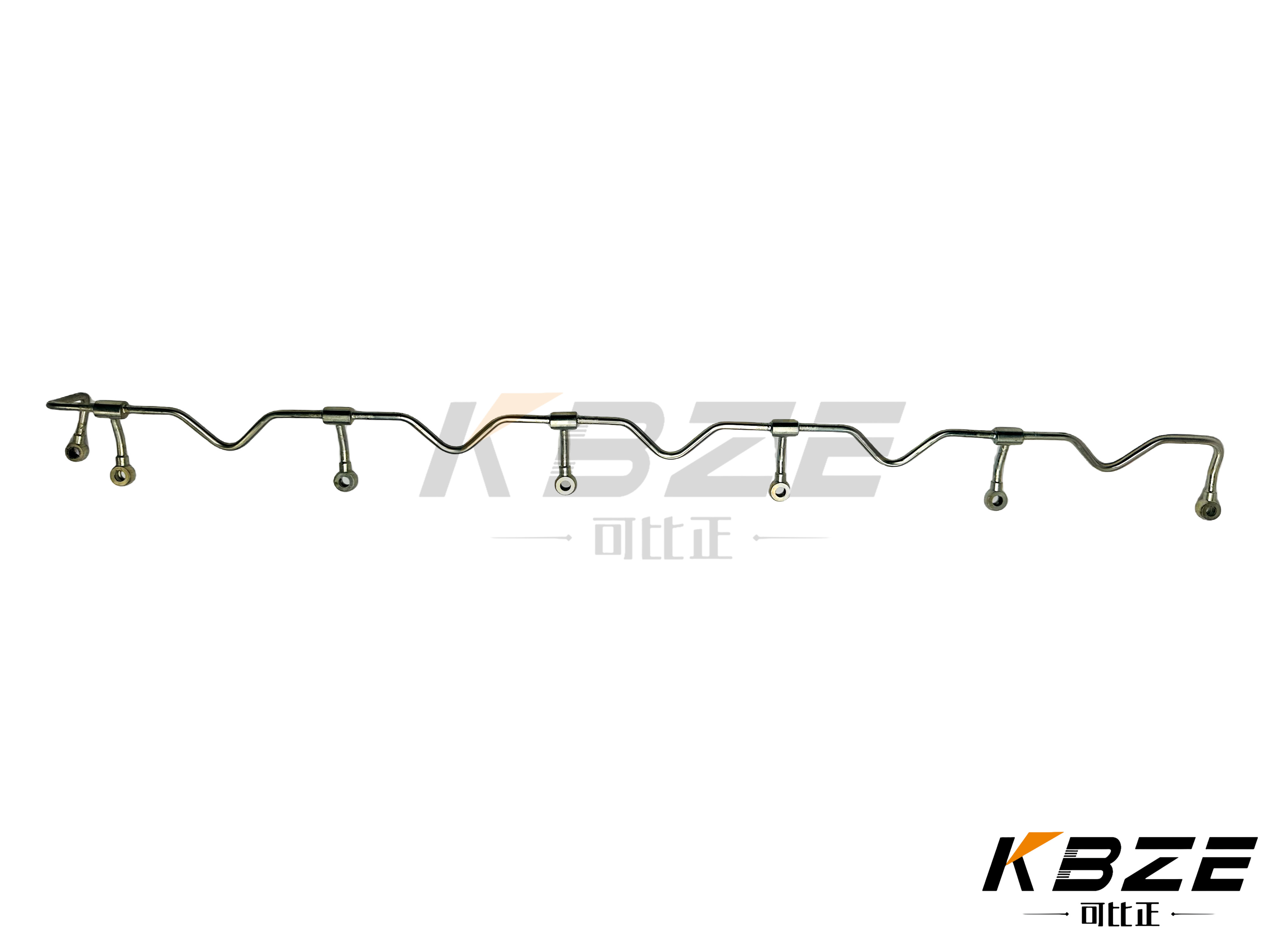

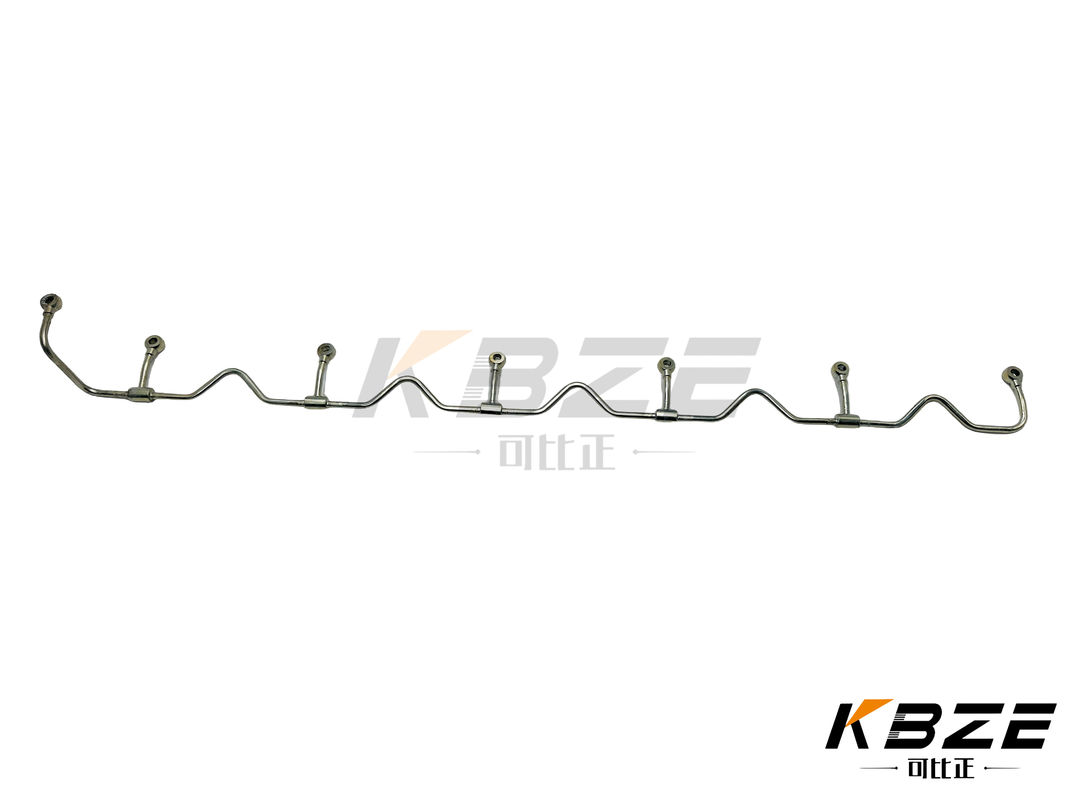

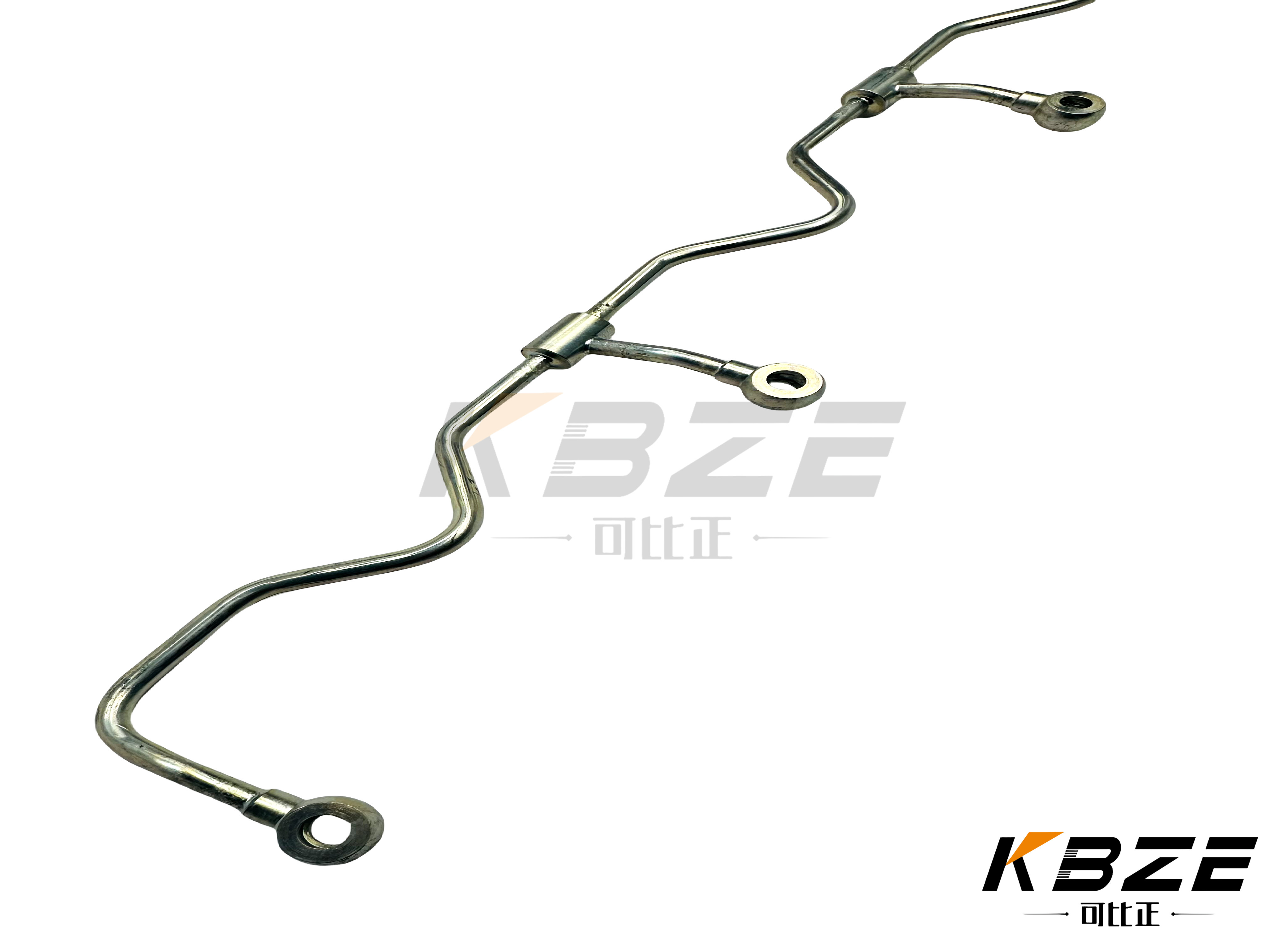

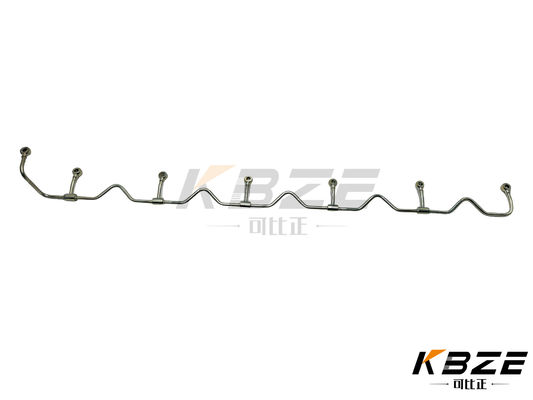

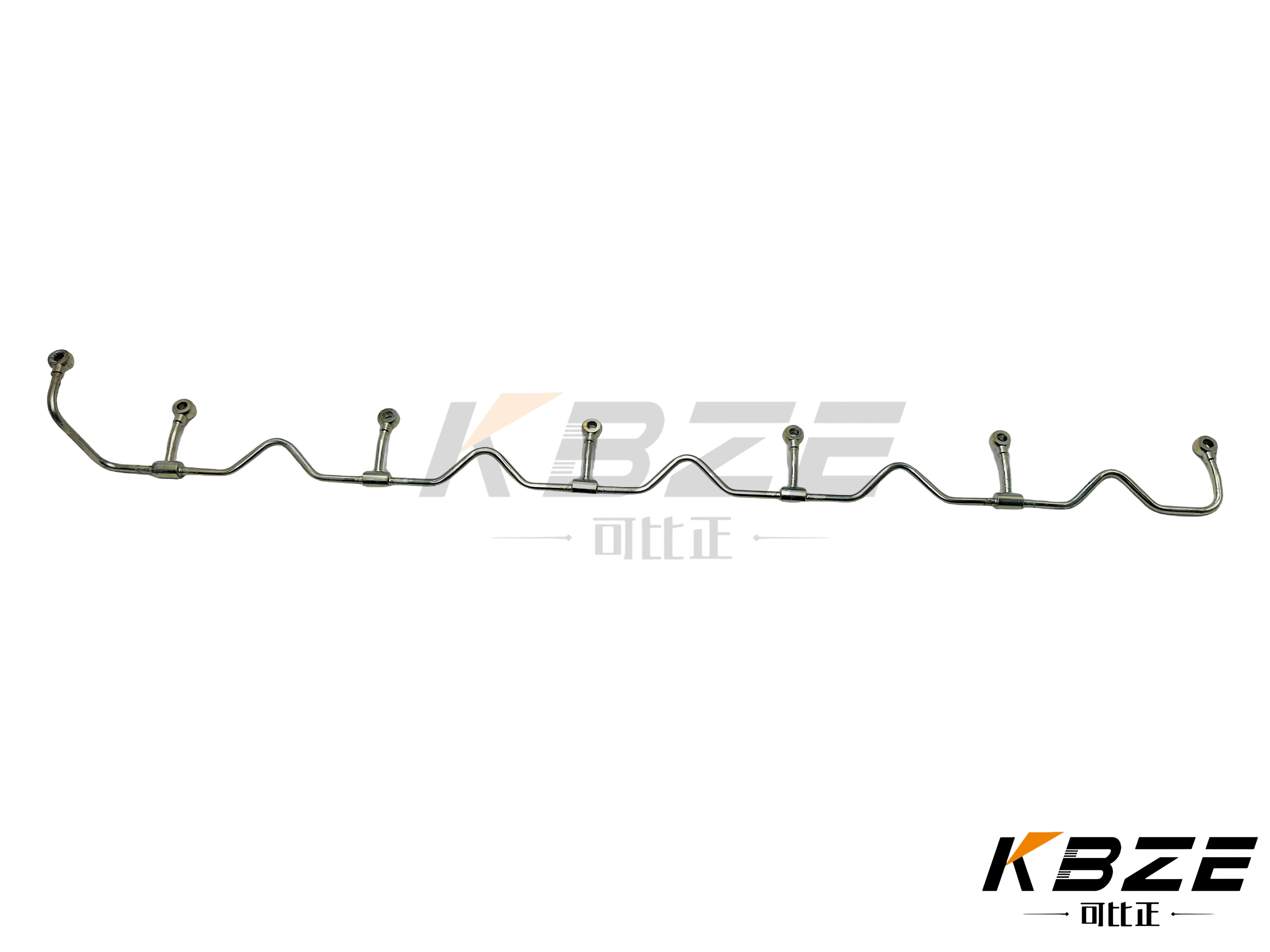

| 137 |
1154161390 |
[1] |
Tüp ASM; Sızıntı |
|
| 138 |
1153430060 |
[6] |
Yay; NOZZLE LWR,NOZZLE HOLDER |
|
| 140 (a). |
1153490510 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.500 |
| 140 (a). |
1153490530 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.550 |
| 140 (a). |
1153490550 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.600 |
| 140 (a). |
1153490570 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.650 |
| 140 (a). |
1153490590 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.700 |
| 140 (a). |
1153490610 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.750 |
| 140 (a). |
1153490630 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.800 |
| 140 (a). |
1153490650 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.850 |
| 140 (a). |
1153490670 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.900 |
| 140 (a). |
1153490690 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.950 |
| 140 (a). |
1153491120 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.400 |
| 140 (a). |
1153491130 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.500 |
| 140 (a). |
1153491140 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.520 |
| 140 (a). |
1153491150 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.540 |
| 140 (a). |
1153491160 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.560 |
| 140 (a). |
1153491170 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.580 |
| 140 (a). |
1153491180 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.600 |
| 140 (a). |
1153491190 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.700 |
| 140 (B). |
1153491200 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.400 |
| 140 (B). |
1153491210 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.500 |
| 140 (B). |
1153491220 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.520 |
| 140 (B). |
1153491230 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.540 |
| 140 (B). |
1153491240 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.560 |
| 140 (B). |
1153491250 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.580 |
| 140 (B). |
1153491260 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.600 |
| 140 (B). |
1153491270 |
|
SHIM; NOZZLE SPRING,NOZZLE HOLDER |
T=0.700 |
| 146 |
1153390980 |
[6] |
SPACEER; NOZZLE |
|
| 163 |
1153190020 |
[6] |
Kapak; INJ NOZZLE |
|
| 272 |
1153190120 |
[6] |
NOZZLE KIT; INJ |
|
| 339 |
1093765120 |
[1] |
Kauçuk; Kaplama |
ID=6 OD=10 L=70 |
